MACH MDS 900-4T CNC knee mill with tool changer
Share via email

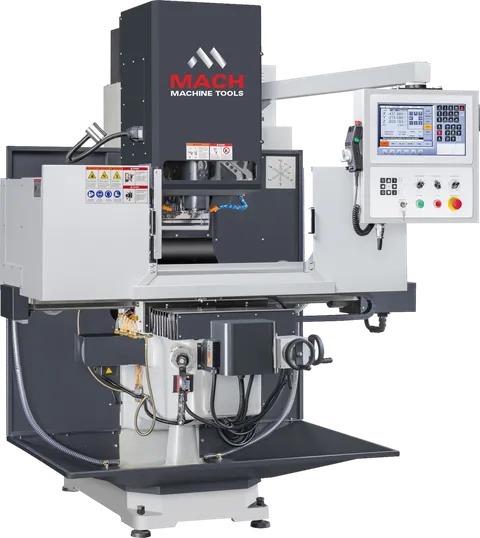

MACH MDS 900-4T

CNC knee mill with 4-tool ATC

Make enquiry

or call +44 (0) 117 965 2706or call +1 313 489 9667

Description

The MACH MDS 900-4T is the larger of MACH's CNC/manual knee mills with an integrated 4-position tool changer, giving 900mm of X travel and a wider table for bigger work.

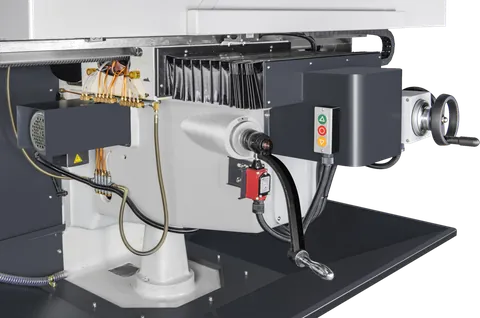

Driven by the 3-axis (4-axis option) DynaPath WinDelta control and Yaskawa drives, it has directly driven X, Y and Z axes and a direct-drive BT 40 spindle (5000rpm). It can be used in manual, semi-automatic and fully automatic modes, making it ideal for toolrooms and machine shops.

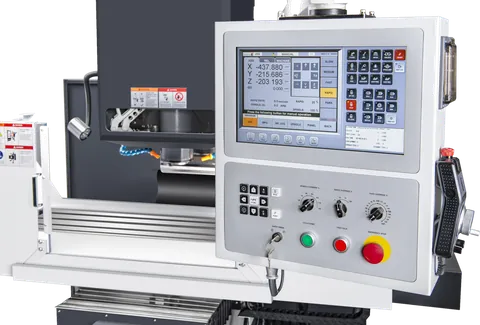

The DynaPath control has a 15.6" LCD touchscreen, accepts programs by USB, Ethernet or wireless, can be programmed conversationally, from DXF or in ISO/EIA G-code, and has 8GB memory and 1000-block look-ahead.

Highlights

  • 3-axis CNC control (Z-axis on the head)
  • 4-position ATC
  • DynaPath 15.6" LCD touchscreen CNC control with 8GB memory
  • DXF file reader
  • Wi-Fi remote assistance
  • Electronic MPG and MPG run
  • Peck drill and rigid tapping cycles
  • Power tool clamp
  • Manual DRO capability
  • Interlocked table guard
  • Coolant/air blast system with base splash tray
  • Automatic lubrication
  • 4th-axis capable
  • Program retrace
  • LED work light

Options

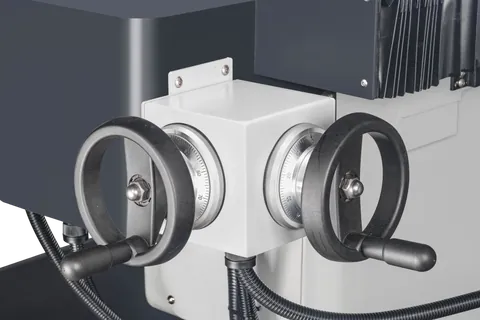

  • XYZ digital handwheels

Accessories

Available to fit to this machine. Ask us when you enquire.

  • 4th axisDynaPath rotary table, integrated with the control and set up and clocked in by MACH.More about 4th axis
  • Programming stationAn off-line DynaPath programming PC that connects to your machine by Wi-Fi.

Specifications

Travel X/Y/Z
900 x 340 x 150mm
Knee travel
350mm
Table size
1470 x 320mm
Table slots × offset × width
3 x 75 x 16mm
Spindle nose to table
100-400mm
Tool to column
360mm
Axis type X/Y/Z
Dove / Dove/ Linear
Motors X/Y/Z
0.85/0.85/0.85kW / Direct Drive 100% rated
Spindle taper
BT40
Spindle diameter
120mm
Spindle RPM
50-5000
Spindle motor
5 HP (3.75kW) Direct Drive / 100% Rated
Spindle rated torque
24 N-m
Tool changer
4 Stations
Max rapid speed X/Y/Z
6000mm/min (236 IPM)
Positioning accuracy
20 um (0.000787")
Repeat accuracy
10 um (0.000394")
Max table load
220kgs
Machine dimensions L × W × H
2000 x 1800 x 2300mm
Machine weight
1800kg
Air requirements
6 kg/cm2 (90 psi)
Power requirements
8 kVA, 3 Phase, 220V
Control system
DynaPath WinDelta CNC System
CE package
CE Table Top Enclosure

Downloads

Other machines in this range

  • MACH MDS 700-4T

    Series

    • X / Y / Z travel: 700 × 310 × 130mm
    • Table size: 1270 × 320mm
    • Spindle: BT40, 50-5000 RPM, 5 HP (3.75kW)

  • MACH MDS 845-8T

    Series

    • X / Y / Z travel: 800 / 450 / 450mm
    • Table size: 850 × 420mm
    • Spindle: BT40, 8000 RPM direct drive, 5.5 kW (7 HP)
