MACH MDS 845-8T "Spider" CNC toolroom mill
Share via email

MACH MDS 845-8T

"Spider" CNC toolroom mill, 8-tool ATC

Make enquiry

or call +44 (0) 117 965 2706or call +1 313 489 9667

Description

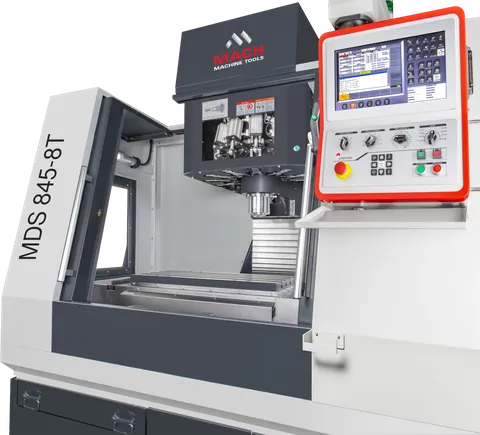

The MACH MDS 845-8T "Spider" has fast become a firm favourite with component manufacturers. It combines the ease of a DynaPath-controlled toolroom mill with an integrated 8-position tool changer and a full safety enclosure, for exceptional performance, productivity and process efficiency.

It has 800 / 450 / 450mm travels, a direct-drive BT 40 spindle (8000rpm, or 12,000rpm on the “S” model), Yaskawa digital drives and a 2.8-second tool-to-tool change.

The DynaPath WinDelta control has a 15" touchscreen LCD and accepts programs by USB, Ethernet or wireless. It can be programmed conversationally, from DXF or in ISO/EIA G-code, and has a built-in DXF editor, 8GB memory and 1000-block look-ahead for smooth 3D contouring.

Highlights

  • UKCA/CE safety enclosure
  • Solid-state hard drives
  • Yaskawa digital drives, interlocks and electrical equipment
  • Bed wash
  • Coolant/air gun
  • LED machine lighting
  • End-of-cycle light stack
  • Electrical cabinet air conditioning
  • 24/7 Wi-Fi remote service support

Options

  • 12,000rpm direct-drive spindle with coolant through the spindle
  • S specification: through-spindle coolant

Accessories

Available to fit to this machine. Ask us when you enquire.

  • ProbingTool setter and spindle probe, fitted and fully calibrated by MACH.More about Probing
  • 4th axisDynaPath rotary table, integrated with the control and set up and clocked in by MACH.More about 4th axis
  • Programming stationAn off-line DynaPath programming PC that connects to your machine by Wi-Fi.

Specifications

Travels X/Y/Z
800 / 450 / 450mm
Spindle Nose to Table
90 ~ 537mm
Centre of spindle to column
435mm
Spindle Taper
BT40
Spindle Max RPM
8000 RPM Direct Drive
Table Size
850 x 420mm
T-Slots
18 x 85 x 4off
Max Table Load
220 kg
Max Rapid Rate
20 m/min
Max Cutting Rate
10 m/min
X/Y/Z Axis Type
Linear rail with roller bearings + Ball Screw

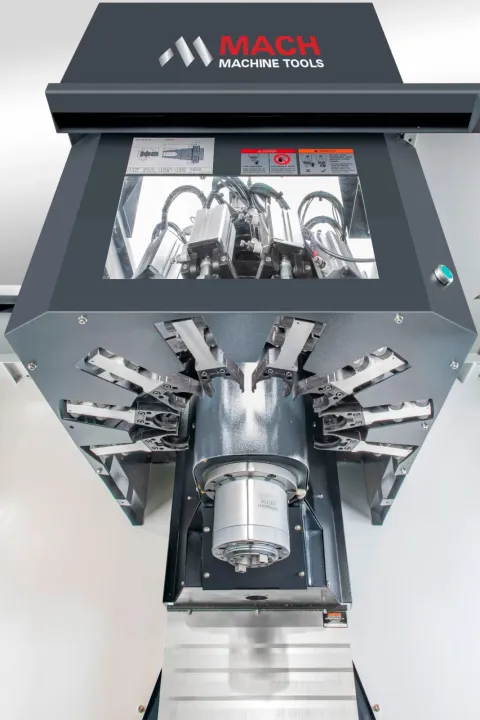

ATC Type
8-Tool Independent Arm, arrange around the spindle
Max Tool Dia
63mm Ø
Max Tool Weight
5 kg
Tool change time (tool to tool)
2.8 sec
Spindle Motor
5.5 kW (7 HP) / 100% duty cycle rating
X/Y/Z Servo motor rating
Yaskawa 0.85 / 0.85 / 1.3 kW
Positioning Accuracy
0.005 um
Repeatability
±0.003 um
Power requirement
15 KVa (supplied with 415V-220V 7kVA Transformer for UK)
Air requirement
6 kg/cm3
Footprint (LxWxH)
2200 x 2539 x 2304mm
Weight
3750 kg
Control System
DynaPath WinDelta with 15" Touchscreen LCD D11 Console

Downloads

Other machines in this range

  • MACH MDS 700-4T

    Series

    • X / Y / Z travel: 700 × 310 × 130mm
    • Table size: 1270 × 320mm
    • Spindle: BT40, 50-5000 RPM, 5 HP (3.75kW)

  • MACH MDS 900-4T

    Series

    • X / Y / Z travel: 900 × 340 × 150mm
    • Table size: 1470 × 320mm
    • Spindle: BT40, 50-5000 RPM, 5 HP (3.75kW)
