MACH MDL 1800
CNC flat bed lathe
or call +44 (0) 117 965 2706or call +1 313 489 9667
Description

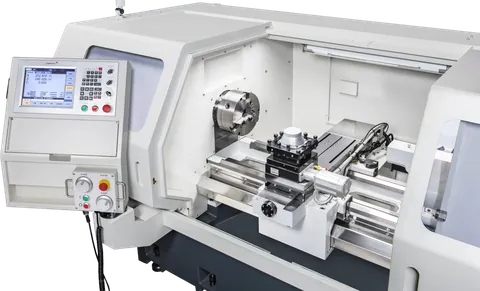

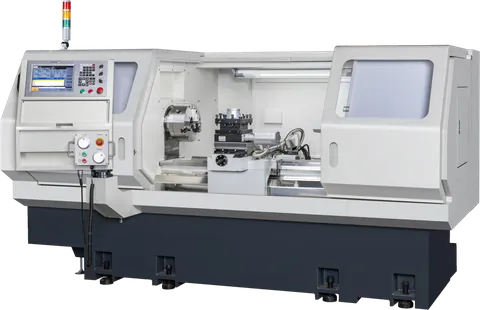

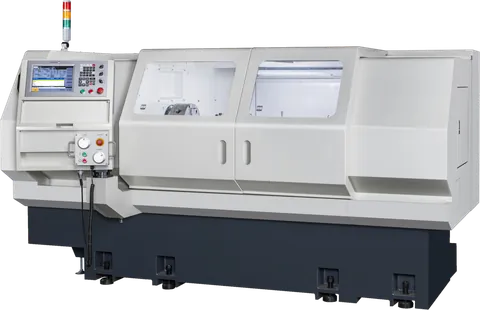

The MACH MDL 1800 is a high-performance CNC flat bed lathe with the DynaPath WinDelta control, with a larger swing, a 79mm spindle bore and 1000mm of Z travel.
It has a 2 or 3 speed range variable-speed headstock with constant surface speed, 3-jaw and 4-jaw chucks, face plates, travelling and fixed steadies, a tailstock, a quick-change tool post with 6 holders, 2 electronic handwheels, an auto lubrication system and a coolant system as standard. An automatic 4-way tool post is available as a factory-fit option.
Highlights
- 12.1" touchscreen
- Conversational, DXF and ISO/EIA G-code programming
- Dual electronic handwheel station
- Automatic lubrication
- Manual 10" 3-jaw chuck
- Manual tailstock with quill
- Work light and tri-colour light post
Accessories
Available to fit to this machine. Ask us when you enquire.
- Vices, chucks and colletsMachine vices, collet and drill chucks, collet sets and clamp kits.
- Lathe tooling and equipmentLive tooling, tool posts, bar feed, steady rests and chip conveyors.
- Tooling packagesStarter tooling, collets and tool holders made up to your needs.
- Programming stationAn off-line DynaPath programming PC that connects to your machine by Wi-Fi.
Specifications
- Bed type
- Flat Bed
- Swing over bed
- 550mm (21.65")
- Swing over cross slide
- 265mm (10.43")
- Distance between centres
- 1250mm (49.21")
- Width of bed
- 380mm (14.96")
- Travel x/z
- 250mm (9.84")/1000mm (39.37")
- Spindle bore
- Φ 79mm (3.11”)
- Spindle speed
- 10 - 3500 RPM
- Spindle taper / bore / nose
- MT6 / Φ79mm (3.110") / A2-6
- Spindle motor rating
- 7.5 kW (10 HP)
- Chuck type
- Manual 10" 3-Jaw, 12” 4-Jaw
- Rapid x/z
- 5 / 5 m/min (197 / 197 IPM)
- Motor X/Z
- 2.7 HP
- Tailstock quill size
- Φ52mm (2") / MT4
- Tailstock quill travel
- 140mm (5.51")
- Tailstock drive
- Manual
- Repeat accuracy x/z
- 0.005 / 0.006mm (0.00020" / 0.00024")
- ATC Type
- 4-Tool Turret 25mm
- Position accuracy x/z
- 0.010mm/0.016mm (0.00039" / 0.00063")
- Turning accuracy
- 0.003mm (0.00012")
- Dimensions L × W × H
- 300 x 175 x 165 cm (119" x 69" x 65")
- Machine weight
- 2700 KG
