MACH MDL 1600
CNC flat bed lathe
or call +44 (0) 117 965 2706or call +1 313 489 9667
Description

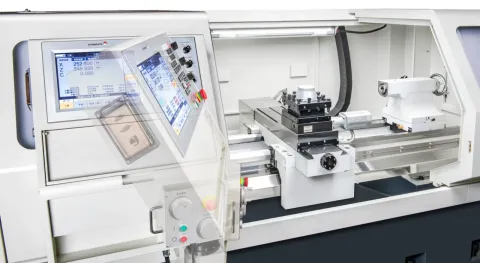

The MACH MDL 1600 is a high-performance CNC flat bed lathe with the DynaPath WinDelta control. It improves productivity and flexibility, and is ideal for prototypes, one-offs and small batches.
It has a 2 or 3 speed range variable-speed headstock with constant surface speed, 3-jaw and 4-jaw chucks, face plates, travelling and fixed steadies, a tailstock, a quick-change tool post with 6 holders, 2 electronic handwheels, an auto lubrication system and a coolant system as standard. An automatic 4-way tool post is available as a factory-fit option.
Highlights
- 12.1" touchscreen
- Conversational, DXF and ISO/EIA G-code programming
- Dual electronic handwheel station
- Automatic lubrication
- Manual 8" 3-jaw chuck
- Manual tailstock with quill
- Work light and tri-colour light post
Accessories
Available to fit to this machine. Ask us when you enquire.
- Vices, chucks and colletsMachine vices, collet and drill chucks, collet sets and clamp kits.
- Lathe tooling and equipmentLive tooling, tool posts, bar feed, steady rests and chip conveyors.
- Tooling packagesStarter tooling, collets and tool holders made up to your needs.
- Programming stationAn off-line DynaPath programming PC that connects to your machine by Wi-Fi.
Specifications
- Bed type
- Flat Bed
- Swing over bed
- 490mm (19.29")
- Swing over cross slide
- 240mm (9.44")
- Distance between centres
- 1050mm (41.33")
- Width of bed
- 300mm (11.81")
- Travel x/z
- 230mm (9.06")/820mm (32.28")
- Spindle bore
- Φ 54mm (2.12”)
- Spindle speed
- 200 - 3500 RPM
- Spindle taper / bore / nose
- MT6 / Φ54mm (2.125") / A2-6
- Spindle motor rating
- 7.5 kW (10 HP)
- Chuck type
- Manual 8” or 4-Jaw, 10” 4 Jaw
- Rapid x/z
- 5 / 5 m/min (197 / 197 IPM)
- Motor X/Z
- 2.6 HP
- Tailstock quill size
- Φ52mm (2.17") / MT4
- Tailstock quill travel
- 140mm (5.51")
- Tailstock drive
- Manual
- Repeat accuracy x/z
- 0.005 / 0.006mm (0.00020" / 0.00024")
- ATC Type
- 4-Tool Turret 25mm
- Position accuracy x/z
- 0.010mm/0.016mm (0.00039" / 0.00063")
- Turning accuracy
- 0.003mm (0.00012")
- Dimensions L × W × H
- 265 x 160 x 165 cm (105" x 63" x 65")
- Machine weight
- 2250 KG
Downloads
Brochure
MDL flat bed lathes (full brochure)
Download brochure MDL flat bed lathes (full brochure) (opens in a new tab)Machine dimensions
MDL 1600 machine dimensions
Download MDL 1600 machine dimensions (opens in a new tab)Wiring schematics
MDL 1600 and MDL 1800 wiring schematics (CE)
Download MDL 1600 and MDL 1800 wiring schematics (CE) (opens in a new tab)Manual
DynaPath WinDelta turn control: control, operating and programming manual
Download DynaPath WinDelta turn control: control, operating and programming manual (opens in a new tab)Video
MACH MDL flat bed lathe with a milling sub-spindle
Video
DynaPath lathe conversational: turning demo
Video
MACH DynaPath conversational editor
Video
A quick look at the DynaPath WinDelta CNC control
- DynaPath quick guides (22)Operating and conversational programming guides for this machine's control
