MACH MDV 1160
Vertical machining centre
or call +44 (0) 117 965 2706or call +1 313 489 9667
Description

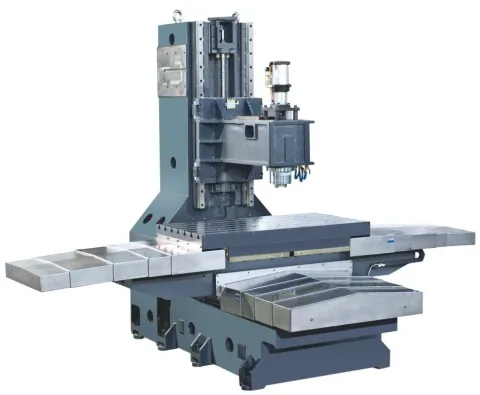

The MACH MDV 1160 is a larger heavy-duty, production-led vertical machining centre, with a 1200 × 600mm table and 800kg table load for bigger work.
It has the PC-based, fully closed-loop DynaPath WinDelta control, a belt-driven BT 40 spindle, a 24-position swing-arm tool changer and linear roller guideways.
The DynaPath control has a 15.6" touchscreen, accepts programs by USB, Ethernet or wireless, and can be programmed conversationally, from DXF or in ISO/EIA G-code.
Highlights
- UKCA/CE safety enclosure
- Solid-state hard drives
- Yaskawa digital drives, interlocks and electrical equipment
- Bed wash
- 24-tool swing-arm ATC
- C3-class PMI precision ball screws
- Automatic lubrication
- LED machine lighting
Accessories
Available to fit to this machine. Ask us when you enquire.
- 4th axisDynaPath rotary table, integrated with the control and set up and clocked in by MACH.More about 4th axis
- ProbingTool setter and spindle probe, fitted and fully calibrated by MACH.More about Probing
- DRO and scalesDigital readouts and scales for the axes and the quill.More about DRO and scales
- Programming stationAn off-line DynaPath programming PC that connects to your machine by Wi-Fi.
Specifications
- Spindle taper
- BT40 / CAT40
- Spindle
- 8,000rpm belt drive · rated output S1 11kW (15hp), S6-40% 15kW (20hp) · torque 80Nm (S6-40% 111Nm) · air cooled
- XYZ travel
- 1100 x 600 x 600mm
- Axes type X/Y/Z
- Linear Rollers
- Spindle nose to table
- 120 - 720mm
- Tool centre to column
- 672mm
- Motors X/Y/Z
- 54Nm / 54Nm / 71.6Nm Direct Drive
- Max thrust
- 26860N
- Spindle diameter
- 150mm
- Tool changer
- 24 Tool Arm Type
- Max tool dia / weight
- Ø80mm / 8 kg
- Max rapid speed X/Y/Z
- 36 m/min
- Max cutting feed X/Y/Z
- 20 m/min
- Positioning accuracy
- 0.006mm
- Repeat accuracy
- 0.003mm
- Table size
- 1200 x 600mm
- Table slots × offset × width
- 5 x 100mm x 18mm
- Max table load
- 800 kg
- Floor space W × L × H
- 2945 x 2500 x 2370mm
- Machine weight
- 7000 kg
- Coolant capacity
- 350 L
- Air requirements
- 6 kg/cm2 (90 psi)
- Power requirements
- 25 kVA, 3 Phase, 220V
Downloads
Brochure
MDV vertical machining centres (full brochure)
Download brochure MDV vertical machining centres (full brochure) (opens in a new tab)Machine dimensions
MDV 1160 machine dimensions
Download MDV 1160 machine dimensions (opens in a new tab)Machine dimensions
MDV 1160 machine specifications
Download MDV 1160 machine specifications (opens in a new tab)Video
MACH MDV 1160-S VMC: sparks fly
Video
MACH MDV 1160-S machining demo at the MACH Show 2024
Manual
DynaPath WinDelta mill control: control, operating and programming manual
Download DynaPath WinDelta mill control: control, operating and programming manual (opens in a new tab)Video
DynaPath mill conversational: hole import demo
Video
DynaPath mill DRO and semi-auto mode: a quick introduction
Video
MACH DynaPath conversational editor
Video
How to calibrate a Blum spindle probe
Video
DynaPath conversational editor: the 'Corner' event
Video
A quick look at the DynaPath WinDelta CNC control
- DynaPath quick guides (21)Operating and conversational programming guides for this machine's control
