MACH MDSL 202

CNC slant bed lathe

or call +44 (0) 117 965 2706or call +1 313 489 9667

Description

The MACH MDSL 202 is a 2-axis, 8" chuck CNC slant bed lathe with everything included in the standard specification.

It has a rigid, solid Meehanite one-piece casting with a 30° slant, linear rails, an infinitely variable spindle and a bi-directional servo-driven 12-tool turret for fast tool selection.

It comes with the DynaPath control and MACH’s Remote Assist: 24/7 expert support with a guaranteed response within 1 hour, and free software updates for the life of the machine.

Highlights

Parts catcher
8" 3-jaw power chuck
Tailstock with programmable quill
Swarf conveyor
MACH X-Tract coolant mist extractor
Tool holder starter pack
DynaPath control with Remote Assist

Accessories

Available to fit to this machine. Ask us when you enquire.

Tool setting armRenishaw tool setting arm for slant bed lathes.More about Tool setting arm
Lathe tooling and equipmentLive tooling, tool posts, bar feed, steady rests and chip conveyors.
Tooling packagesStarter tooling, collets and tool holders made up to your needs.
Programming stationAn off-line DynaPath programming PC that connects to your machine by Wi-Fi.

Specifications

Swing over bed: ø560mm
Max turning diameter: ø500mm
Max bar diameter: ø52mm
Distance between centres: 520mm
Chuck size: ø210mm
X travel: 500mm
Z travel: 500mm
Type X/Z: Linear Rails
Motor rating X: 9 Nm
Motor rating Z: 2 Nm
Spindle speed: 10-4000 rpm
Bore: ø66mm
Nose: A2-6
Main motor size: 14Kw
Max torque ranges: 165 Nm
Max rapid speed: 18 m/min
Max cutting feed: 10 m/min
Positioning accuracy: 0.006mm
Repeat accuracy: 0.003mm

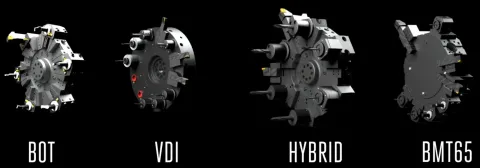

Turret: Block Bolt-On Type BMT-55
Capacity: 12-Tool Servo
Round tool size: ø40mm
Square tool size: 25mm
Boring bar ø: 40mm
Turret index time: 0.4 seconds
Construction: Solid Cast Meehanite 30 Degree one piece casting
Tailstock type: Drag Body, Programmable Quill
Tailstock base travel: 480mm
Tailstock quill travel: 80mm
Tailstock taper: MT5
Tailstock diameter: ø80mm
Floor space, width: 2920mm
Floor space, depth: 1850mm
Floor space, height: 2005mm
Weight: 4800 kg
Power requirements: 415V, 50A, 40KVA
Coolant: 130 L
Hydraulic air: 40 L
Control: DynaPath WinDelta 15.2” Touch Screen control with Wi-Fi Connectivity with FOC lifetime Remote Assist support, 24Gb Memory, 10,000 Blocks of look ahead, Conversational and ISO G & M Code programming, DXF File Reader and on board DXF Editor
