MACH MDM-700

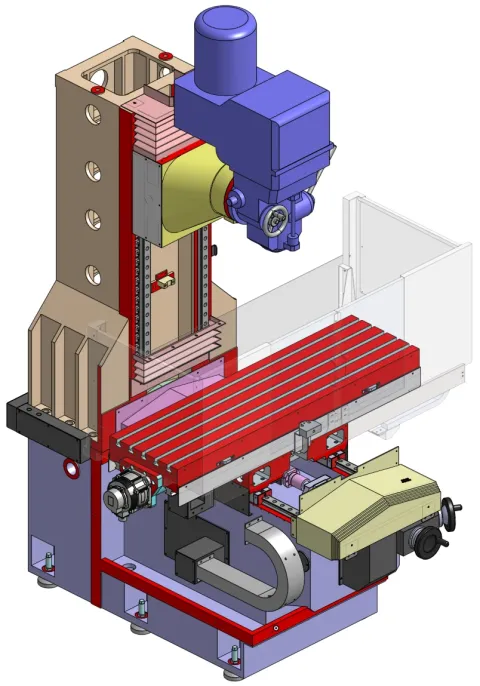

Description

Accessories

Available to fit to this machine. Ask us when you enquire.

• 4th axisDynaPath rotary table, integrated with the control and set up and clocked in by MACH.More about 4th axis
• Vices, chucks and colletsMachine vices, collet and drill chucks, collet sets and clamp kits.
• Tooling packagesStarter tooling, collets and tool holders made up to your needs.
• Programming stationAn off-line DynaPath programming PC that connects to your machine by Wi-Fi.

Specifications

Type

Bed Mill

Spindle Taper

ISO 40

Spindle RPM

70-5000 RPM

Spindle Power 100% Duty Cycle

3.7Kw (5 HP)

Motors X, Y & Z

.96 Kw (1.3 HP)

Feed Rate

5000mm/min (196 IPM)

Table Length

1244mm (49”)

Table Width

228mm (9”)

Tee Size & No

16mm – 3

Tee Slot Off Set

65mm (2.56”)

X Axis Travel

710mm (28”)

Y Axis Travel

400mm (15”)

Z Axis Travel

500mm (19”)

Quill Travel

127mm (5")

Quill Dia

100 (3.93”)

Spindle Nose to Table

100-600mm (3.94”- 23.62”)

Spindle centre to Column

420mm (16.53”)

Accuracy & Repeatability

10 um (0.000394") / 20 um (0.000787")

Head Swivel

+ / - 90 Deg

X,Y & Z Axis Way

Linear Roller Rail

Max table load

400 Kgs (880 lbs)

Coolant Capacity

120 L

Coolant flow rate

50 L/min – 3 bar

Machine Weight

1790 Kg (3938 lbs)

Ship Dims: Dimensions L x W x H

2270 x 1800 x 2350mm (90” x 70” x 92”)

Floor space

2520 x 2590 x 2490mm (100” x 102” x 99”)

Power Requirements

4 KVA, 3 Phase 415 Volts 50 Hz
