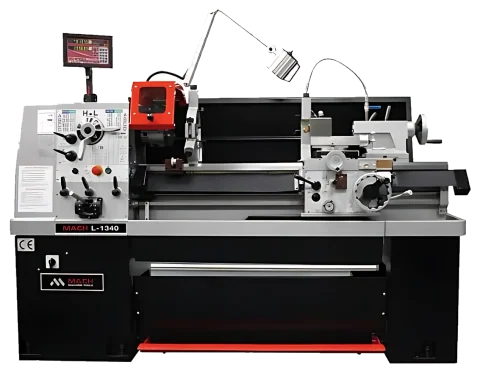

MACH L1330/1340
Manual lathe
or call +44 (0) 117 965 2706or call +1 313 489 9667
Description
The MACH L1330/1340 is the most compact of MACH’s L-series manual lathes. It gives precision component manufacturers, toolrooms and training workshops outstanding accuracy and class-leading performance in a compact footprint.
A heavy-duty spindle in a robust, rigidly built headstock gives more flexibility and higher productivity. The machine is supplied ready to work with a Newall DP 500 2-axis digital readout, 3- and 4-jaw chucks and a quick-change tool post.
Highlights
- Heavy-duty spindle in a robust headstock for flexibility and productivity
- Headstock with British Matrix manufactured clutches, nylon safety pins in the end train, and chromium molybdenum gears and shafts
- Induction-hardened and ground gears and shafts for reliable, long-life performance
- Meehanite cast, anti-vibration, stress-relieved bed with Turcite B between the bed and carriage
- Anti-float backlash eliminators for better accuracy, surface finish and tool life
- Newall DP 500 2-axis digital readout
- 3- and 4-jaw chucks and a quick-change tool post supplied
- Variable speed available as an option
Accessories
Available to fit to this machine. Ask us when you enquire.
- Vices, chucks and colletsMachine vices, collet and drill chucks, collet sets and clamp kits.
- DRO and scalesDigital readouts and scales for the axes and the quill.More about DRO and scales
Specifications
- Centre Height
- 171mm (6.73”)
- Swing over Bed
- 342mm Dia (13.46”)
- Swing in Gap
- 512mm Dia (20”) (L1340 Only)
- Swing over Cross Slide
- 209mm Dia (8.25”)
- Distance Between Centres
- L1340 1000mm (40”) / L1330 750mm (30”)
- Width of Bed
- 230mm (9”)
- Length of Gap in Front of Face Plate
- 150mm (6”) (L1340 Only)
- Spindle Nose
- D1-4 x MT No 5
- Spindle Bore
- 40mm (1.57”)
- Spindle speeds
- 16 Step via 8 ranges & 2 speed motor: Range 1 50 – 1305 RPM, Range 2 100 – 2570 RPM
- Carriage Length
- 400mm / (15.75”)
- Cross Slide Travel
- 180mm / (7”)
- Compound Slide Travel
- 100mm / (4”)
- Whitworth Threads
- x 45 / 2-72 TPI
- Metric Threads
- x 39 / 0.2 – 14mm
- DP Threads
- x 21 / 8-44DP
- MP Threads
- x 18 / 0.3 – 3.5MP
- Longitudinal Feeds
- 0.05 – 1.7mm (0.002”-0.067””
- Cross Feeds
- 0.025 – 0.85mm (0.001”-0.034”)
- Tailstock Quill dia
- 50mm / (2”)
- Quill Travel
- 112mm / (4.5”)
- Quill Taper
- MT No 3
- Motor
- 2.2KW (5HP) AC type
- Coolant Pump
- 0.25HP
- Weight
- 1200 kgs
- Size L x W x H
- 2270mm x 965mm x 1900mm
Downloads
Machine dimensions
L1330 and L1340 machine dimensions
Download L1330 and L1340 machine dimensions (opens in a new tab)Manual
L1330 and L1340 instruction and spare parts manual
Download L1330 and L1340 instruction and spare parts manual (opens in a new tab)
