Machine dimensions

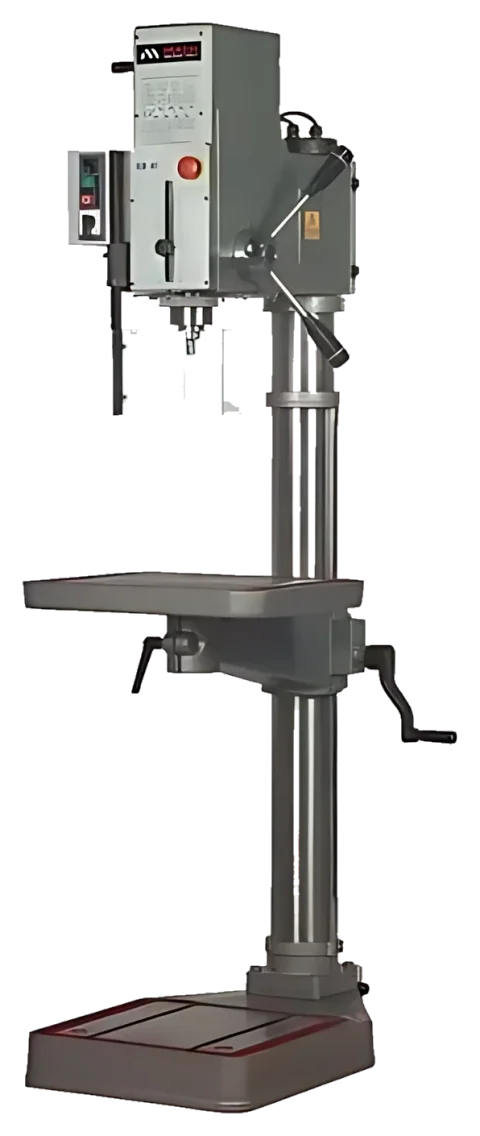

MACH SB 32 AUT
Geared head drilling machine
or call +44 (0) 117 965 2706or call +1 313 489 9667
Description
The MACH SB 30 Auto is one of MACH's proven high-performance geared head drilling machines. It has auto down feed and reverse.
Highlights
- Auto down feed and reverse
- Power down feed
- Height-adjustable table for increased flexibility
- Smooth and quiet operation
- Powerful 1.5hp motor
- Optional coolant system
- Optional auto feed and auto tapping
- CE micro-switch spindle safety guarding
Specifications
- Drilling Capacity (ø mm)
- 32
- Taper bore of spindle
- MT3
- Tapping Capacity
- M16
- Spindle travel
- 150mm
- Throat depth (mm)
- 300
- Table length (mm)
- 500
- Table width (mm)
- 400
- Max. load on table (kg)
- 70
- Number of spindle speeds
- 12
- Rpm
- 85-3200
- Motor (KW)
- 1.5
- Voltage
- 3x400
- Net weight (kg)
- 295
- Note
- Auto feed, auto reverse, 3 x feed ranges / rev
